LINCam

Datasheet

Photon counting is the only way to get as much information brought by light as it is physically possible. Here we present the system allowing to detect not only arrival time of individual photons but also a position as straightforward as camera. Standing on the shoulders of night vision technology LINCam allows to extend any simple wide-field microscope to the powerful fluorescence lifetime imaging system.

Fluorescence lifetime imaging

Example of lifetime imaging of a lily of the valley slice sample. The intensity image (a) is a histogram of the positions of acquired photons. Lifetime analysis reveals four lifetime components: τ1 = 0,19; τ2 = 0,67; τ3 = 1,95 and τ4 = 3,75 ns. The resulting overlay image (b) of the intensity image and average lifetime is shown.

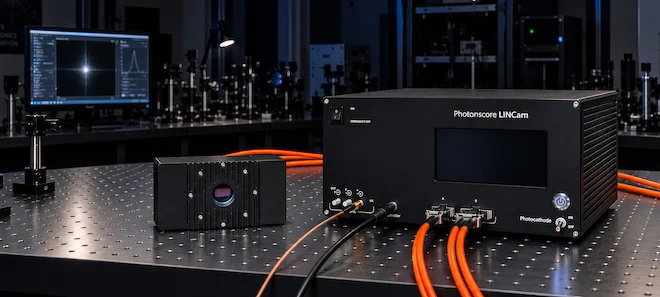

Acquisition system

Everythng one needs for robust and reliable single photon counting in a single box. The acquisition system integrates time to amplitude converter, analog to digital converters, power suppliers, reference signal constant fraction discriminator and more. Just plug it to USB 2.0 port.

Two sizes

LINCam is not only a camera but two. In addition to ∅25mm model for special applicaitons we offer detector system with ∅40mm of sensitive area.

Specs


LINCam25 and LINCam40 mainly differ by active area diameter and mechanical construction.

Detector
LINCam25
LINCam40
Active area diameter, mm
25
40
Positional resolution, pixels
1000×1000
Temporal resolution, ps FWHM
50
Microscope mount
C-Mount
T-Mount
Housing dimentions, mm
145 × 78 × 50
145 × 100 × 53
Weight, g
500
600
Cooling
Air/Liquid


We offer two acquisition systems. One is Gen2 that employs conventional ADCs. And even a faster one Gen3 (preliminary) with multi megasamples per second ADCs for photons hungry applicaitons. The later option is does not use conventional time-to-amplitude converter for timing acquisition but digitizes timing signal directly with 2.5 gigasamples per second precission.

Acquisition system
Gen2
Gen3 (preliminary)
Maximal count rate, MHz
1
5
Dead time, ns
300
80
Time to digital converter
Minimum bin width, ps
1.5
1.0
Electrical resolution, ps
6
12
Number of bins
4096
Infinite
Reference input
Positive or negative NIM
Time tagging resolution, ns
10
8
Computer interface, ns
USB 2.0
Gigabit ethernet
Operating system
Windows 7/10, 64 Bits
